Successful lighting renovation of a lowered plaster ceiling with LED strip lighting and Hidden spotlights

With a lowered plaster ceiling, the lighting renovation was decided to be carried out in the LedStore premises using new high colour rendering index, colour temperature adjustable 22 W/m LED strips and frameless 12W Piilo LED spots, as well as Zigbee smart control. This is a step-by-step description of the lighting renovation and the cost of the lighting and control system. The room combines indirect lighting and target lighting, which can be adjusted separately with a wireless controller. The lighting can be adjusted both by continuously changing the colour temperature of the white light and by dimming. The versatile and adjustable lighting allows the room to be used in a variety of ways. The space is equally suitable as a nursery, bedroom or study.

Making a lowered plaster roof starts with planning

They wanted a more modern look and variable lighting. The room had one spot in the middle of the ceiling and one light switch, and no changes were wanted. The lowered roof was the easiest to make and the renovation could be completed without any changes to the roof. The advantage of plasterboard roofs is that they are relatively easy and inexpensive to modify. Indirect LED strip lighting was planned to be installed around the shelf in the lower level. For spot lighting, they wanted unobtrusive spotlights.

Wireless dimming and colour temperature control were designed into the room, in addition to the existing switch. Colour temperature control means that the Kelvin of white light in a room can be adjusted infinitely between about 2 700 and 5 500 Kelvin, so you get the right lighting for your needs and mood.

Although the room height was lowered by 10 cm with the lowered roof, the room is not affected by the lowering. Indeed, the increased amount of lighting nicely compensates and adds interest and vibrancy to the room. A downlight frame works great for applications where no changes to the ceiling or walls are desired or possible, but where recessed lighting and indirect lighting are still desired.

The power point in the middle of the frame was used to power all the lights, and the difference compared to a single light in the middle of the ceiling is staggering. When the luminaires are installed with their own group transformers, the lighting system becomes a two-part system, i.e. the LED strip lighting can be controlled in its own group and the spotlights in their own group.

Roof, lowered from the centre, lowered structural section

The picture below shows a sketch of the lowering frame with dimensions. The size of the plate frame is 1 550 mm x 2 250 mm. The longitudinal lap is positioned at the drywall joint. Horizontal spacings are 390 mm apart, as recommended for plasterboard installations. 1.5 Gyproc sheet was used for the lowering, giving a surface of 1 800 mm x 2 500 mm. This plan provided enough clearance, 125 mm in all directions, to be used as shelves for the LED strip. Wide enough shelves leave the LED profiles hidden and indirect lighting is nicely achieved.

design of a suspended plaster ceiling — The ceiling is lowered into the room with a board frame and plasterboard. The dimensions of the Gyproc board were used, so that 1.5 plasterboards were fixed to the frame and the plasterboard formed a 125 mm wide shelf on which the LED strip was mounted.

Sunken ceilings – how to choose the right lighting

The LED luminaires were selected so that 22 W/m LED strips with colour temperature control were chosen for indirect lighting in the room and the ceiling light was chosen to match the target lighting, 12 W Piilo LED spots with no frame were chosen for the side lighting, Zigbee smart control was used for the lighting control. In practice, a 200W driver transformer for LED strips and a receiver for Silicon Spots, suitable for Zigbee control. The room was left with an already installed on/off switch, which can be used to turn the lights off and on in the whole room if desired. Wireless control receivers also allow the lights in the room to be controlled by a wireless controller. The luminaires are also connected to the Philips Hue mobile controller, which also enables programming and scheduling.

The luminaires chosen were a 22 W/m LED strip with a high light output and colour temperature control. A colour temperature controlled LED light has both a warm and a cold circuit in one LED point, the ratio of which is adjusted to change the colour temperature. The spotlights chosen are 12W Piilo Kantti spotlights without a frame, which are plastered to the ceiling. The spots also have a colour temperature control.

Indirect light on the roof – steps for a drop ceiling

The size of the room where the descent was made is 12 m2. The area of the lower landing is 4.5 square metres, which is one third of the surface area of the roof. In summary, the stages of the renovation were as follows:

The board frame is assembled and fixed to the ceiling.
Wiring is brought to the spotlights and LED strips.
The plasterboard is attached to the frame and the plastered frames of the silo spots are attached to the board.
The surface is sanded and painted.
Led rails are made ready for installation.
Spotlights, LED rails are installed and connected to wireless controllers.

Lowered ceilings at different stages of work.

Making a landing – attaching the frame and wiring

The lowering frame was assembled according to the plan and fixed to the ceiling with 120 mm screws. Holes were pre-drilled about halfway through the fixing points. The wiring was pre-wired in the places where the spots and drivers for the LED strips were planned to be placed. The wiring of the concealed spots was done with a wiring harness designed for colour temperature controlled low current luminaires, with quick connectors for the spots ready.

Fixing of the frame and wiring bushings.

Indirect roof lighting – preparing the plaster ceiling for installation of Silo spots

The plasterboards were fixed to the ceiling and levelled, sanded and painted. The plastic frames of the hiding spots were fixed with a screed and then packed on top and sanded a total of three times. The roof was made straight by spreading the screed up to about 50 cm from the openings with a long flange. After painting, the gaps in the lowered plaster ceiling were finished and the spots sat neatly in the frames. Finishing suspended ceilings requires precision, especially if the plasterboard is in several sections when it leaves the building.

machining a lowered plaster ceiling for spots — Plasterboard treatment for silicon spots.

Piilo Kantti spots waiting to be installed and a pre-installed spot hidden away. The light is positioned about 35 mm below the plane of the roof.

Manufacture of Led strip rails taking into account the structure of the ceiling

The selected colour temperature adjustable 22 W/m Tunnel strip strip was mounted on a low profile surface, which was made into two L-shaped rails. Intermediate wires of about 10 cm were knocked into the corners. The rails were therefore dimensioned so that they are 5 cm shorter than the frame at both ends. The light opens out so widely that it is a good idea to leave the rails shorter than the corners in this form, so that the lights do not illuminate the so-called “light strip”. on top of each other, so that the corners would quickly become brighter than with straight sections. It is easier to lift two L-shaped rails into place on the shelf of a lowered plaster ceiling than four interconnected rails, and you can still get both strip joints on the same transformer.

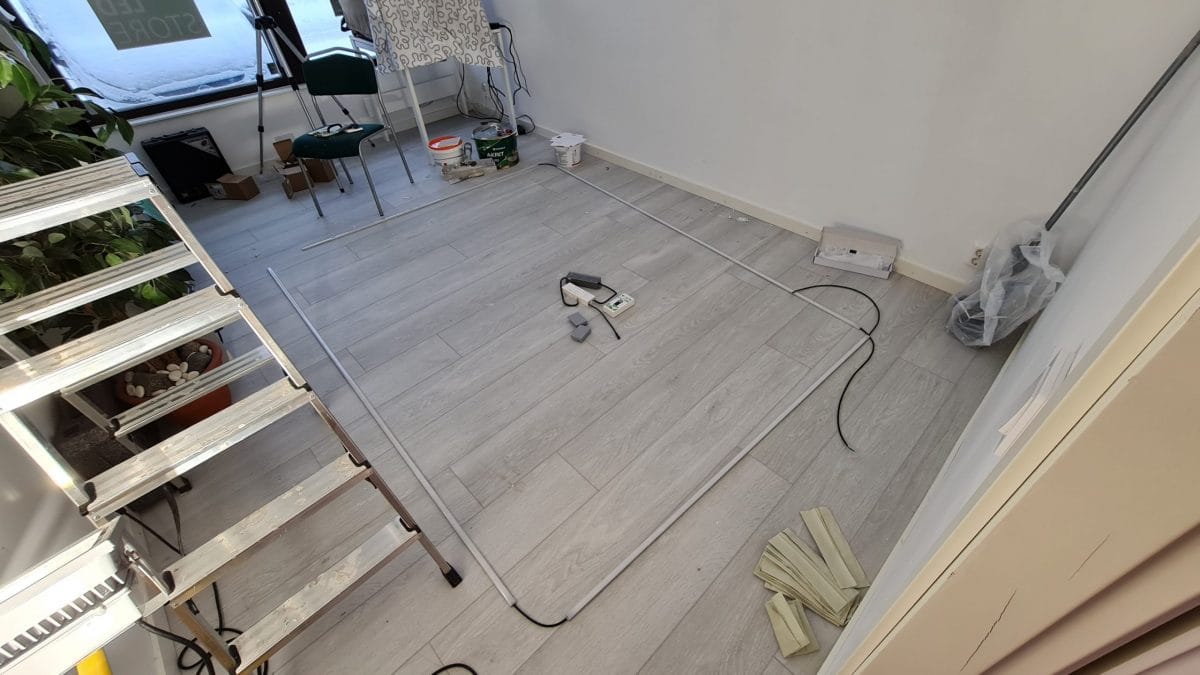

L – shaped led rails ready for installation. The aim is to have indirect lighting on the ceiling.

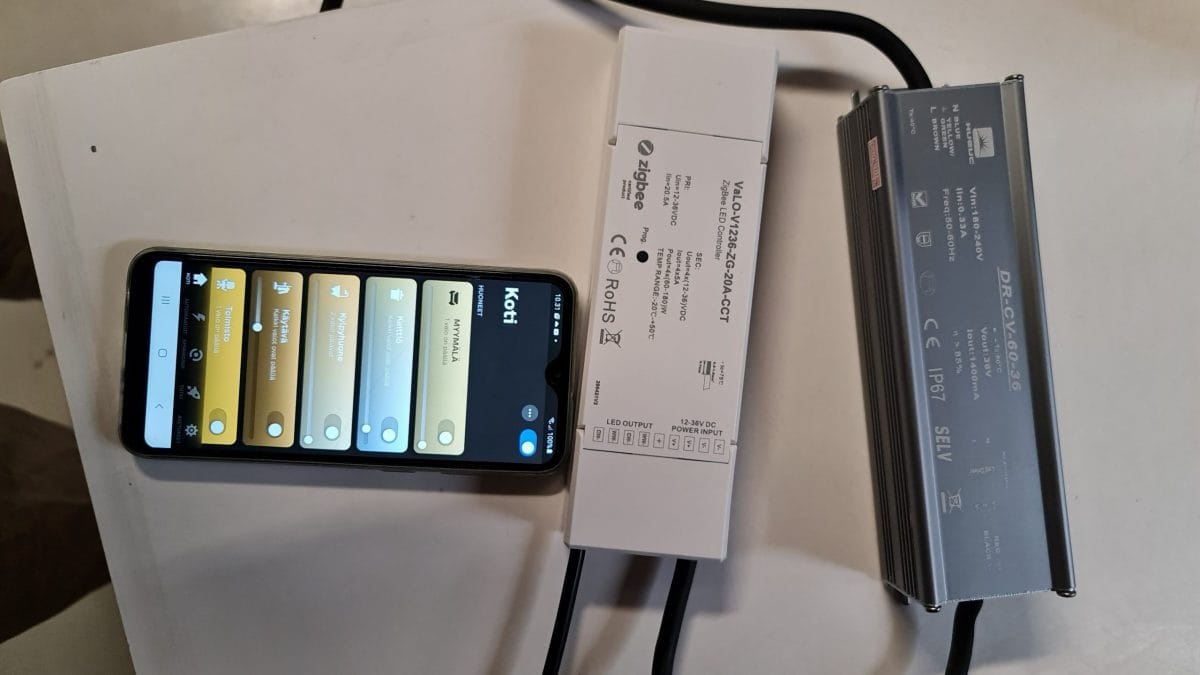

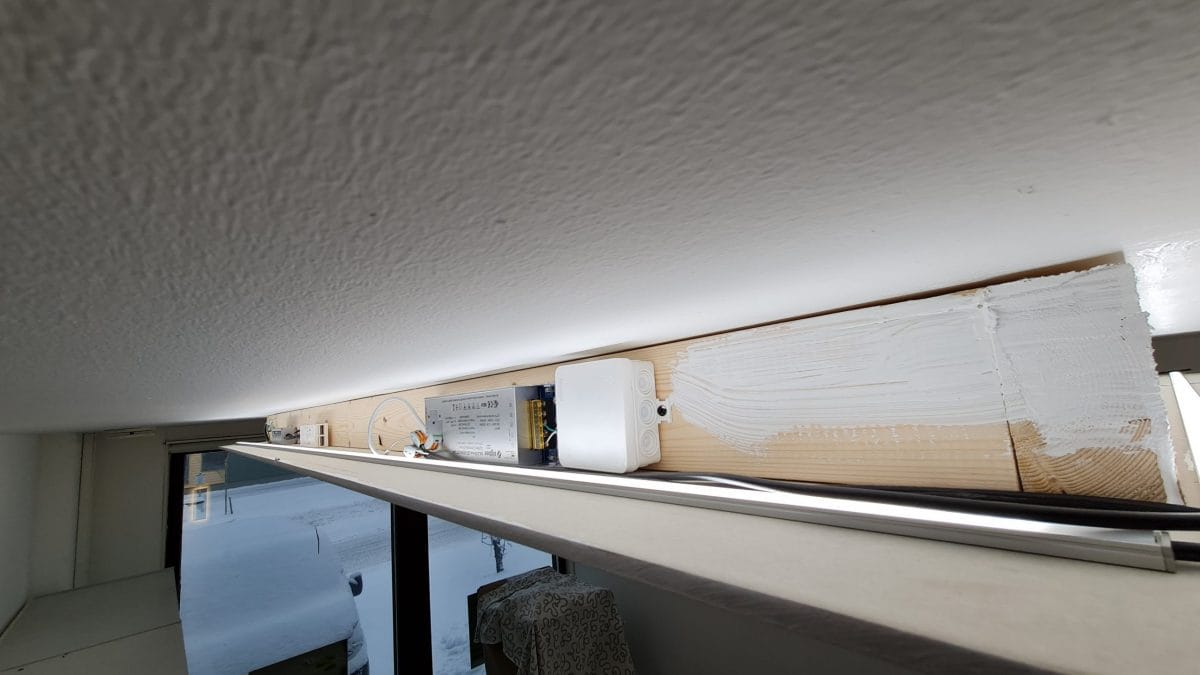

The shelf below housed both the 200W driver on the LED rail with built-in wireless Zigbee receiver, and the spotlight driver visible in the background, paired with a Zigbee receiver for wireless control.

Switching on lights by connecting them to the remote control and Hue bridge

A large part of the convenience of lights is the ease of use of the desired features. So a simple Zigbee colour temperature remote control was chosen for the lights. The controller has a wall-mounted bracket to which the remote control is attached by a magnet. The lights were also added to the Philips Hue hub. You can read more about Hue linking in our blog, Zigbee devices take over part 2.

The mobile interface for lights connected to the Hue bridge allows you to schedule and program the desired scenarios for groups of lights.

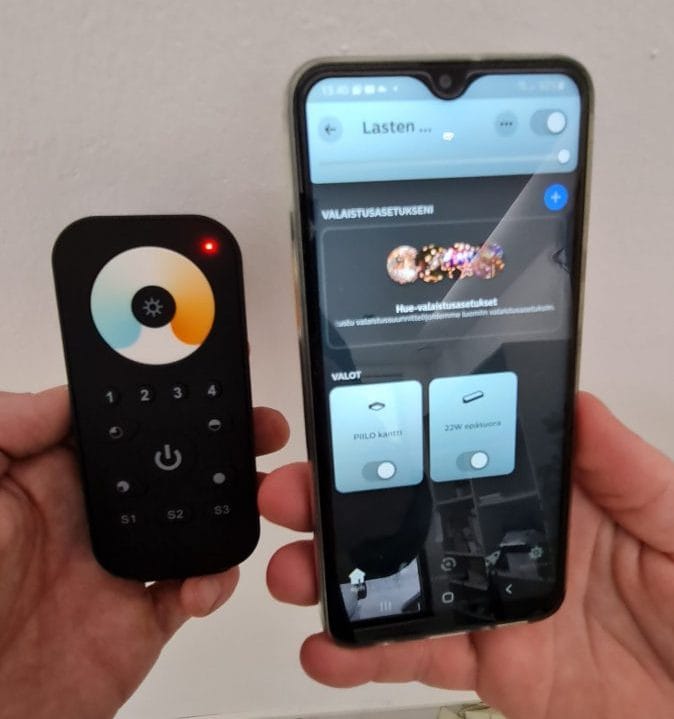

The remote control and mobile phone can be used to adjust the colour temperature and dimming of the white light.

Price of the whole with light and photos of the finished renovation – by Janne Halttu

The materials used for the suspended plasterboard roof itself are very inexpensive. Board, plasterboard, screed, paint and a few screws cost less than €100. The cost of the lights was 564 euros for the spotlights, 847 euros for the LED rail ready for installation from LedPaja, 79 euros for the remote control, total 1500 euros (incl. VAT). So for the money you get 224 watts of LED power, which gives you 5330 lumens in a 12 square metre space, some of which is spot light and some of which is indirect light.

The mood of a room changes dramatically depending on the colour temperature or brightness of the lights. We are very happy with the renovation, and we can recommend the centrally dropped plaster roof to others.

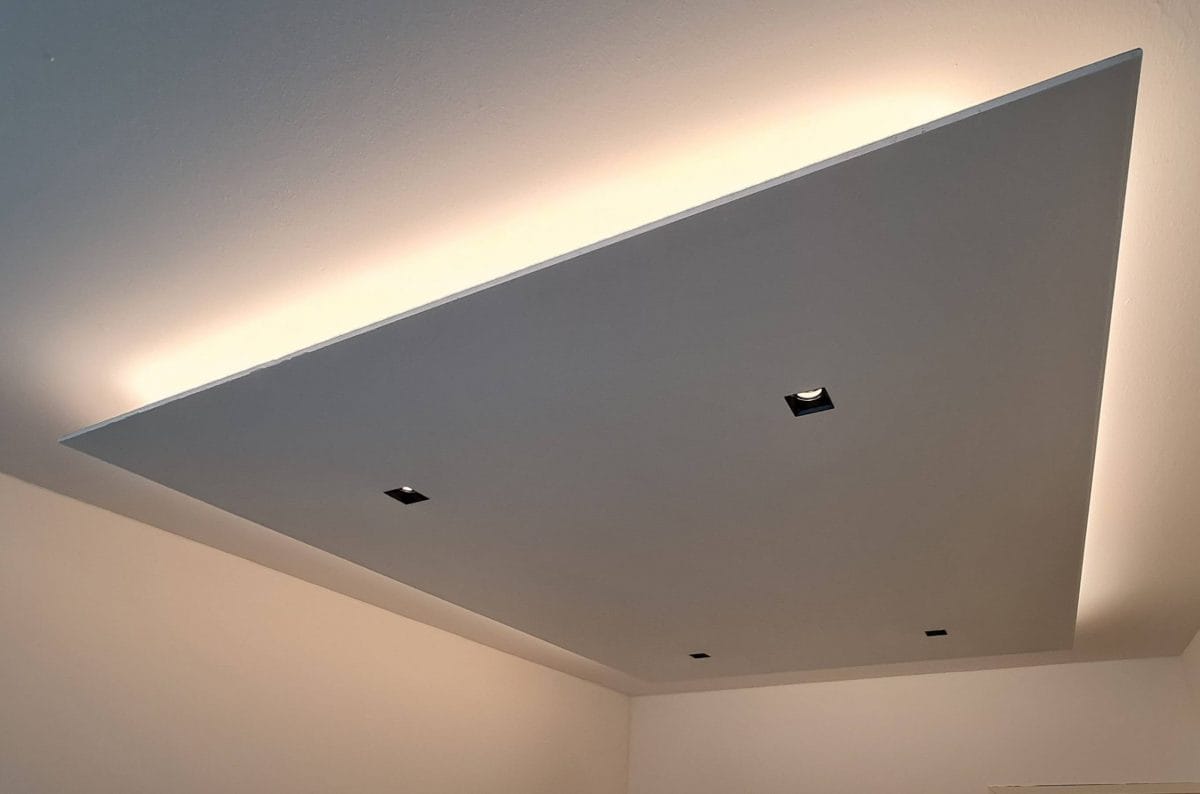

Finished lowered plaster roof, lights adjusted to daylight colour temperature — Ready to lower, lights adjusted to daylight colour temperature. Indirectly, the ceiling provides a good deal of light into the space. Hideaway spots are elegantly recessed into the ceiling, and the light opens directly onto the floor. The lights are characterised by the lowest possible lateral glare.

Ideas for variations on implementations at the same price

If you want to make your drop-down plaster ceiling more decorative, you can paint it in a colour to match your interior, or even wallpaper it to look stylish.

This installation method can also be used with other luminaire combinations. For example, the same price will be obtained by replacing the colour temperature adjustable LED strip on the ceiling with the one-degree lower efficiency Tunnelma 14.4 W/m 1000 lumens per metre, and adding two more Silo spots to the downlight. In this case, the amount of direct spotlighting is increased and the indirect light is more clearly atmospheric.

If you are a light user who needs more colour, we recommend using the Kameleontti RGB 14,4 W/m led strip. In this case, the remote control becomes a controller that can be used to adjust both the colour temperature adjustable spots and the true colour changing LED strip.

Here’s another article where we made a lowered plaster roof as a multilevel

Hiding spots in the finished lowered ceiling. Light shades warm at the top and cold at the bottom. — Piilo Kantti LEDs illuminate about 4 cm above the ceiling level from the black inner frame, which limits the light opening into the space. Led list on the ceiling provides indirect lighting.

a lowered plaster ceiling and CCT lights change the atmosphere of the room — This is what led lighting for the ceiling looks like! The Led light strip provides a generous amount of light when 22 W/m is selected, with a luminous efficacy of 1600 lumens/m. Piilo Kantti LED spotlights 12W provide 1000 lumens of light per spot with a narrow wedge opening from the inside of the roof as a spotlight. The light pattern will be about one metre wide when illuminated from a height of 2.4 metres.
