Led strip light – a comprehensive guide to choosing a led strip light

Led strip lights are increasingly popular for general lighting in the home. You’ve probably heard the arguments in favour of LEDs: led strip lights are more efficient, brighter, more durable, don’t produce much heat, easy to control and program… the list goes on. It is precisely because of these advantages that we have a large number of LED strip lights in our range.

One of the most popular installation methods is indirect LED strip lighting, as shown in the picture below. Another way is efficient target lighting with LED strip. When the led strip is installed inside an aluminium profile, it is called led rail lighting, led profile lighting or linear led lighting. The versatility of aluminium profiles makes it a very popular choice, offering a wide range of solutions for both commercial applications such as shops, galleries, work spaces and residential lighting. There is also a wide range of prices depending on the type of tape. When buying LED strip lights, there are many things to consider to ensure you get the right type of light for your needs. In this article, we will go through the important elements of LED strip lighting and LedStore’s strip products as fully as possible.

Led strip light in the ceiling
Led strip light in the kitchen

LED strip light comparison, what are the differences between LED strip lights?

The LED strip lighting category is a broad one. Depending on how you plan to use LED strip lights, you may need, for example, a high-powered, dot-free, temperature-controlled strip, or a low-powered, low-dot monochrome strip. They all have a high colour rendering index (CRI) in common, ensuring high quality lighting. For example, IP65 protected LED strip lights are suitable for outdoor and humid areas because they have a protective surface that makes them waterproof. Below is a brief description of each type of LED strip light, but they will be discussed in more detail later in this guide. The most common basic length of Led strip light is a 5 metre roll on LedStore, and can be divided into 3 categories:

HELMEILE – led light strips, SMD 2835, 5050 or 3527 using conventional dotted led light strips. There are 30-240 Led circuits per metre. The LED circuits are usually in groups of 6 LEDs, and the cut-off spacing is 2.5 – 16 cm, depending on the spacing of the LEDs. A separate control circuit appears next to the Led circuits in the strip. There is a wide range of bead types in different light intensities, Kelvin, RGB colours, including waterproof to IP65.

Led lightstrip HELMEILE
Led light strip HELMEILE with dense led spacing and 5 cm cut points.

SOLO – led light strips, COB technology. The new generation of dot-free LED strip lights have been in our range since 2021. There are 360-840 LED circuits per metre depending on the luminous intensity of the LED strip. The cutting spacing is 2.5 – 5 cm. Under the Led circuitry is a layer containing the control circuit. These SOLO tapes are manufactured on a durable 12 mm wide or 5 mm PCB base in the SOLO Slim model. Choice of multiple light intensities, dimmable, RGB colours and waterproof with IP65 protection.

Led strip light SOLO CCT is the best technology
The most popular LED strip light: SOLO CCT has no dots.

NEONled strip light IP65, with Helmeile technology, but with a silicone body through which the light passes completely dotlessly. The body of the Led strip light is moulded in a ready-made LED strip and these are available in 24V DC or directly connected to 230V mains. Socket plugs ready at both ends of the reel. The 24V NEON led strip light can be cut every 5cm. DO NOT CUT The 230V light strip!

NEON IP65 LedStore.fi
NEON IP65 Suitable anywhere. Led strip and protection in one.



All our led strip lights can be found here

Number of LEDs in LED strip lights

When buying LED strip lights, it is important to consider the number of LEDs per metre. For brighter output and a more even beam, you should choose an LED strip light with LED circuits in a higher density per metre. If the LEDs are too far apart, they will produce a dotted light instead of a continuous line of light when viewed directly. This is a matter of appearance and will affect how the end result looks.

Note that LED density is not the only factor determining brightness and light quality. If the LED strip light has a single-tone LED circuit, e.g. 3000K or 4000K, it always produces more light per circuit than a temperature controlled (CCT) LED strip light. The colour temperature adjustable strip has both warm and cold LED circuits in parallel, and by adjusting the mixing ratio of the two, the desired colour temperature of the white light is achieved.

For example, a HELMEILE 4000K 14.4W led strip has 120 LEDs per metre and a TUNNELMA 22W led strip has 192 LEDs per metre, but the monochrome led circuit is capable of producing more light. Of the Led light strips, our densest strip is the SOLO CCT 14.4W with 840 LEDs per metre, but for light output the Helmeile type 17W/m TASAINEN 240 LEDs per metre is better. So the number of LEDs does not tell the whole truth.

Led strip light brightness

As LED technology continues to evolve, LED strip lights are also constantly improving. This does not mean that all tapes are very bright or better than the previous ones. in some cases, you may not even want the light to be bright. An example of a low-power led strip is accent lighting on a shelf or plinth.

The brightness of LEDs is expressed in LUMENS. Depending on where you install your LED strip lights, you will probably want a certain level of lumens. For example, a 7.2W/m HELMEILE produces 500 lumens per metre or a 22W/m CCT SOLO led strip light produces 1300 lumens per metre.

For mood lighting, you probably don’t need anything brighter than 200 lumens per metre, but there is no hard and fast rule here – the light output depends on personal preference and the mood you’re going for. Of course, also materials with a light reflecting surface. Dark colours eat up a lot of light and dark surfaces require MUCH more light than white surfaces. Simple, isn’t it? =)

When you use LED strips for general lighting purposes in a room, and not just for mood creation, calculating the wattage becomes a degree more difficult. Brightness needs depend on the direction of the light, its distance from the object (the area you intend to illuminate), personal preferences and, again, materials. In Finland, for example, the Finnish Lighting Society has published recommendations on the amount of light in different rooms that are worth looking at.

Make sure you take into account the lumens and lengths required for each LED strip, as well as the lighting directions. Indirect LEDs compared to perpendicular LEDs illuminate in a completely different way. LedStore’s lighting design professionals can help you determine the right amount of light for your space. Feel free to contact us our lighting designers!

LED strip colours

Our LED strip lights come in a wide range of monochrome, temperature-controlled and multicolour LED strip (CCT, RGBW or RGB+CCT). In their simplest form, LED strip lights produce a single shade of white light; warm white 3000K or neutral white 4000K.

Colour-changing LED strip lights are called RGB (Red, Green, Blue) strip lights. These LED strip lights can display any colour in a red-green-blue mix, effectively 16.8 million different colours. RGBW- led lights are the most common colour-changing strip lights. In addition to the colours, they also feature a monochrome white (W=white) light. Theoretically, RGB light is centred on white light, but if you want to use a white LED strip that is also pleasing to the eye and to the viewer, the RGB strip must have its own circuit, RGBW. The LED lights on the strip alternate between RGB and White diodes, so that the light can produce multicoloured effects, but also normal white when you need it.

When you combine RGB with white light tone control, you have RGB+CCT. The picture shows an example of six colours and three shades of white.

led lights in different colours
led lights in different colours and shades of white. RGB+CCT led lights

Colour temperature of white light

Colour temperature (CCT) is a concept we use to distinguish the different shades of white that LEDs can produce. (Colour) temperature indicates how warm or cool the light looks. The temperature is expressed in Kelvin (K). Higher temperatures represent cold colours (blue tint) and lower temperatures represent warmer colours (yellow tint).

Adjustable white lighting has become a very popular lighting trend. This type of lde strips offers multiple CCT colours on a single LED strip and requires its own controller, just like RGB lighting. Instead of CCT LED strip lights producing a vibrant rainbow of colours, adjustable white lighting changes the mood of your room from 2500K warm white to 6500K cool white.

Different kelvin readings for Solo CCT
As an example, three different kelvin readings on LedStore’s Solo CCT led strip

Installation of LED strip lighting

When you buy LED strip lights for your property, you should also have an idea of how you are going to install them. For some strips, such as NEON led strips, it’s simple: cut a 10mm groove in the mounting location and press the strip into the groove. Surface mounting is also possible with the supplied brackets.

Other LED strip lights always require a metal surface underneath. When there are corners in the installation, they can be much more difficult to install. You have to cut and connect led strips together. Here are some factors you should always keep in mind:

  • Total length of LED strips needed
  • How many angles or how many separate strips you need for the installation
  • Power and voltage requirements for Led strip lighting
  • LED strip protection: do you need waterproof?
  • Depending on the installation site, find out if other components such as connectors or additional wiring are needed
  • Decide how to dim, control or program the led strips you need. Transformers/power supplies and controllers are an essential part of LED strip lighting.

Led profile or mounting profile for led strip light

Led strips always need a led aluminium profile for installation. There are 3 important reasons:

  1. Led strip light needs aluminium/metal to release heat. Cooling practically doubles or triples the life of the LED strip light. LedStore’s warranty for led strips is only valid for strips attached to a metal surface.
  2. The cover beautifully balances the light and protects against dust. Finishing touches. Always included with the aluminium profiles you buy from us.
  3. Led strip tape adheres well to the metal surface. The tape is designed to release heat. For example. wood or glass directly is the worst possible surface, as they do not give off heat. Also, the wood is alive, so it is normal for the led strip to come off the surface.
Led aluminium profiles
Led aluminium profiles for Led strip light

How do you know if the LED strip is installed incorrectly? The easiest way to see it is the silicone coating on led strip has turned to yellow, because of the HEAT.

LED strip light power requirement

Another key factor when installing LED strips is knowing the power (watts) and voltage (volts). First, you need to work out the total power requirements of the system you want to install. In LedStore’s product descriptions, the wattage is multiplied per meter of LED strip, so it’s easy to calculate the total power when you know how many meters of LED strip you have.

Calculating the total power not only helps you find the right power supply, but also tells you how much electricity you are using when the lights are at full brightness.

Once you know the total power, find out the voltage. Our power supplies are 12V or 24V led light strips, except NEON 230V led strip. It is Plug & Play ready. The strips available at LedStore are 90% 24 VDC. Just make sure you know what voltage the tape needs, and find a power supply with that voltage. Choose a power supply at least 10% higher than the wattage consumed by the LED strips.

If your power supply does not have a wattage rating (LedStore products do), it is good to know that: voltage (V) x ampere (A) = wattage of your power supply. For example. 5A 24VDC output means 5 x 24 = 120W

Control of monochrome, CCT, RGBW and RGB+CCT led strips

Adjustable LED strip lights can be controlled with control devices available from us. Transformer + controller combinations or transformers with built-in control are available. The controller is selected according to the features you want to control. A TRIAC transformer is usually connected to a wired wall dimmer. The system to be installed with the DALI transformer is connected to the controllers according to the software. For wireless RF and Zigbee control, we offer a comprehensive range of controllers/dimmers/colour and dimming controls in both wall-mounted and hand-held models.

The range includes:

Among the well-known ZIGBEE control systems directly supported are. Philips HUE, ABB Free@Home, DALI. There are separate articles on all of these.

Zigbee,multi-part article series: part 1, part 2, part 3, part 4, part 5

ABB Free@Home compatibility : ABB Free@Home and LedStore led lights

Buying LED strips – the most important information about LedStore strips

Now that we’ve gone through some of the basics of buying LED strip lights, let’s take a look at the range. In the remainder of this article I have compiled all the tapes, and will present each one individually, which will hopefully help you in your decision on which led strip is best suited to your needs. This is the most important section of the post, as it will help you find the best led strips for your needs and gives you all the information you need about tapes to make your lighting project a success.

HELMEILE – 7,2W and 14,4W led light strips

Available in 12V and 24V volts, these versatile LED strip lights are the most popular product for home lighting in almost any indoor or outdoor space with electricity 🙂 They are the simplest to solder and customise, making them suitable for DIY projects such as adding extra light behind the head of a bed or turning a trolley wheel into a lamp. Commercial and work spaces are also popular destinations, and thousands of customers and contractors like these reliable led strips for their ease of use.

With lumens of 500 (7.2W) or 1000 (14.4W) /m, these can be selected to suit almost any application. Separate led circuits SMD 2835. Led strip light 12mm wide. The Led circuits are in a 5 LED series where each series has its own control circuit. Available in 12V and 24V DC. Water and dustproof IP65 and dry room IP21 tape. These strip types are monochrome 3000K or 4000K. The light quality is a superb CRI 97, so ambient colours are reproduced beautifully.

The number of LEDs is a dense 120 LEDs per metre and the LED strip can be cut every 5 cm. Two wires (+ and -), making it easy to solder new connection wires. Our Led light strips always come with 3M thermal tape to make it easy to attach the strip to metal.

These strips fit all our profiles (except SLIM profile). The strips themselves generate little heat, making them perfect for tightly located installations. The tapes are available in 5 meter rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density GOOD 120 LED / METRE
  • Light output/watt GOOD
  • 3000 or 4000K warmer or neutral
  • Interval of cut 5cm
  • Soldering EASY

HELMEILE-type TASAINEN – 17W led light strip

These 24 volt LED strip lights are the most popular product for a high light demanding application, such as a kitchen worktop or indirect lighting for high spaces. In the same way as Helmeile other strips for use in versatile home lighting, do-it-yourself projects and renovations.

Separate led circuits SMD 2835. Led strip light 12mm wide. The Led circuits are in a 6 LED series where each series has its own control circuit. The tape is available in 24V DC. Water and dustproof IP65 and dry room IP21 tape. The flat strips are monochrome available in three different options: 3000K, 3500K or 4000K. Light quality is a stunning CRI 97, so ambient colours are beautifully reproduced.

The number of LEDs is VERY dense, 240 LEDs per metre, and the LED strip can be cut every 2.5 centimetres. Two wires (+ and -), making it easy to solder new connection wires. Our Led light strips always come with 3M thermal tape to make it easy to attach the strip to metal.

For flat-tapes we recommend surface mounting 16x18mm, 45 degree angle profile or 9×39 SLIM2 aluminium profile, as this led strip produces a lot of heat in addition to light. The tapes are available in 5 meter rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density 240 LED/ METRE
  • Light output/watt EXCELLENT
  • 3000, 3500 or 4000K
  • Interval of cut 2,5cm
  • Soldering EASY

TUNNELMA – Helmeile family CCT led light strips

These stunning colour temperature adjustable TUNNELMA LED strips bring a changing mood to any room in your home, both inside and out. By adjusting the colour temperature, you can influence how calm or active the room feels and what tones stand out in the interior. The CCT strip can be used in the same way as other LED strips, but the control units must be taken into account.

Separate double white LED circuits SMD 3527. Led light strips 8 or 12mm wide, depending on the power class. Led circuits are in a 6 led dot array. The tape is available in 24V DC. These LED light strips have adhesive tape for easy attachment to the profile, and can be cut in 5cm (22W), 10cm (14,4W) or 16cm (7,2W) centimetre increments. The 7.2W CCT is always IP65 protected and the 14.4W and 22W are IP21.

These strip types are temperature adjustable between 2700-5500K. Three wires (+, – warm and – cold) for connection. Light quality is great, with a colour rendering index of CRI 98, so ambient colours are perfectly reproduced.

CCT led strip light fits all our profiles. The strips themselves generate little heat, making them perfect for tightly located installations. Note that in our lowest profile, the LED dots on the profile cover are visible when viewed directly from the front, and depending on the density of the LED strip, but the light is certainly even. The tapes are available in 5 meter rolls, but made to measure From the workshopyou can get them ready made in any size.

  • LED density 30, 60 or 120 circuits per metre
  • Luminous intensity/wattage BASIC
  • 2500-5500K sliding adjustment
  • Cut-off spacing 5 cm, 10 cm or 16 cm
  • Soldering CHALLENGING

KAMELEONTTI 14,4W – Helmeile family RGBW led strip lights

This KAMELEONTTI LED strip with bright colours brings the joy of colour to every room in your home, both inside and out. By adjusting the colours, you can influence how the space looks and what kind of mood you want to create. A great party builder. The RGBW strip can be used in the same way as other LED strips, but the control must take into account the adjustment possibilities.

Separate led dots SMD 5050. The Led strip is 12mm wide. Led circuits are in a 6 led series. Each LED circuit has RGB and W in the same. The tape is available in 12 or 24V DC. These LED strip lights have adhesive tape for easy installation and can be cut every 10cm. Available only as IP65 waterproof, which can of course also be used in dry areas.

This type of strip is colour adjustable from R = Red, G = Green, B = Blue and additionally W = 4000K using millions of shades. Five wires (+, -R, -G, -B, -W) for connection. The light quality is basic CRI85 as the white tint is adjustable made from an RGB chip, so colours are reproduced reasonably well, so not the best light quality for general lighting.

RGBW led strip lights can be installed on all our profiles (except Slim profile). The strips themselves generate little heat, making them perfect for tightly located installations. Note that in our lowest profile, the LED dots on the lid are visible when viewed directly from the front, but the light is of course steady. The tapes are available in 5 meter rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density 60 LED / METRE
  • Luminous intensity/wattage BASIC
  • RGB + 4000K
  • Cutting interval 10cm
  • Soldering HARD

CAMELEON+MOOD – HELMEILE family RGB+CCT led light strip

This LED strip is a great option when you want both colour control and colour temperature control. A great quality product and one of our newest led strips.

SMD 3527 circuit. Led strip light 12mm wide. The Led circuits are alternated in a 6 led series of 50+50 leds with each series having its own control circuit. The tape is available in 24V DC. This versatile LED strip light has an adhesive backing for easy installation and can be cut every 12.5cm. For indoor use IP21.

This type of strip is colour adjustable R = Red, G = Green, B = Blue and colour temperature adjustable white light between 2700-5500K. Six wires (+, -R, -G, -B, -WW, -CW) for connection. The light quality is a superb CRI 98, and because the shade is adjustable, colours are reproduced perfectly.

RGB+CCT led strip lights fit all our profiles. The strips themselves generate little heat, making them perfect for tightly located installations. The reason why there are few LED dots in this strip is that there is an alternating RGB and CCT LED circuit, so in some profiles you will see LED dots, but the light is of course steady, especially in indirect lighting. The tapes are available in 5 metre rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density 50 LED / METRE
  • Luminous intensity/wattage BASIC
  • RGB + CCT 2700-5500K
  • Interval of cut 12,5cm
  • Soldering SUPERHARD

SOLO – 5mm led light strip 7,2W, COB technology

A super narrow, no-dot new generation LED strip light. There are 540 Led circuits per metre. The cutting distance is 5cm. Under the Led circuitry is a layer containing the control circuit. Always manufactured with a durable 5mm wide PCB base and waterproof IP65 protection. The light quality is a superb CRI 98, so colours are reproduced perfectly. 2-sided tape ready.

Super head SOLO 5mm fits as the only one 12mm wide profile on the bottom. The led strip is ideal for carpentry, for example, where the LED strip is installed as a decorative accent light. The tapes themselves produce little heat, making them perfect for tightly located installations. The light is always perfectly even because of the no-dots technique.

The tapes are available in 5 meter rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density 540 LED / METRE
  • Light output/watt EXCELLENT
  • 3000K or 4000K
  • Interval of cut 5cm
  • Soldering EASY

SOLO – Temperature adjustable led light strips 3,6W – 14,4W, COB technology

Dot-free new generation LED strip lights. Used as general lighting throughout the home and other areas where you want a spotless light and always the right shade of light. The most popular LED strip light for the kitchen is the 14,4W SOLO CCT. This is because the light has no dots and does not reflect dots from a shiny surfaces (stone surfaces, glass partitions).

There are 360-840 Led circuits per metre. The cutting-off intervals are 2,5-5cm. Under the Led circuitry is a layer containing the control circuit. Always manufactured on a durable 12mm wide PCB base. Many options for light output and protection: 3.6W and 7.2W are IP65, and 14.4W IP21. 2-sided tape ready.

SOLO CCT dotless led strip light fits all our profiles. The strip types are colour temperature adjustable between 2500-6500K. Three wires (+, – warm and – cold) for connection. The light quality is a superb CRI 98, and because the shade is adjustable, colours are reproduced perfectly.

The tapes themselves produce little heat, making them perfect for tightly located installations. The light is always perfectly even because of the no-dots technique.

The tapes are available in 5 meter rolls, but made to measure From the workshop you can get them ready made in any size.

  • LED density 360/540/840 LED / METER
  • Light output/watt GOOD
  • 2500-6500K
  • Cutting interval 2,5 – 5cm
  • Soldering HARD

CHAMELEON+MOOD – SOLO family RGB+CCT led light strip

Dotless new generation LED strip light. There are 840 Led circuits per metre. The cutting distance is 4,2cm. Under the Led circuitry is a layer containing the control circuit. Always manufactured on a durable 12mm wide PCB base. This versatile LED strip light has a 2-sided tape ready for easy attachment. This LED strip is only available for indoor use IP21.

This type of strip is colour temperature adjustable between 2500-6500K and colour adjustable R = Red, G= Green, B = Blue. Six wires (+, -R, -G, -B, -WW, -CW) for connection. The light quality is a superb CRI 98, and because the shade is adjustable, colours are reproduced perfectly.

RGB+CCT led strip lights fit all our profiles. The tapes themselves produce little heat, making them perfect for tightly located installations. Due to its no-dots design, always pointless light even at the lowest profile. Led strip is available in 5 meter rolls, but From the workshop you can get it ready made in any size.

  • LED density 840 LED / METRE
  • Luminous intensity/wattage BASIC
  • RGB + CCT 2500-6500K
  • Interval of cut 4,2cm
  • Soldering SUPERHARD

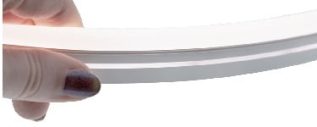

NEON – led strip lights, with Helmeile technology, but with a silicone body.

The body of the Led strip light is moulded in a ready made LED strip and these are available in 24V DC with temperature control or 230V mains 3000 and 4000K.

24V CCT adjustable NEON led strip light can be cut off every 5cm.

NEON “lightcable” 230V is sold in a 5 meter roll with a male and a female schuko plug at one end. This 230V lightcable must not be cut!

These strips are used on terraces and balconies, but also embedded in plasterboard/plywood.

We also have some other led strip lights that we have not yet covered here, as these were our most popular led strip lights.

Waterproof led strips… or not

IP21 The most common and simplest is IP21 led strips without a protective surface layer. Please note that when mounted on our mounting profiles, they always come with IP44 protection against splashes. These led strips are ideal for applications where you don’t have to worry about water or dust ruining the tape and electrical components. So all the places inside, including the ceilings in the washroom. So, for example, an LED strip light for the kitchen will be splash-proof in any profile and can be installed under the drying cabinet!

IP65 Waterproof LED strip lights are otherwise the same as IP21 LED strip lights, but with the addition of a thin, non-yellowing, flexible layer on top of the strip. Waterproof strips are recommended for outdoor lighting, patio lighting, bathroom lighting (a waterproof profile is also required at floor level) and direct metal fixing without a protective cover, where moisture or dust can collect on the strip surface.



Led strip light according to the installation site

Let’s once again summarise the most popular LED strip lights by installation location. In particular, the 14.4W SOLO CCT is one of the most ordered, i.e. among the most popular, due to its good base power and temperature adjustability. With the rise of smart home and Zigbee lighting (Philips HUE), all locations are suitable for temperature-controlled LED strip lighting.

Led strip light for kitchen, led strip light for kitchen area

  1. Solo CCT 14,4W (dottless CCT adjustable, glossy surfaces)
  2. Helmeile CCT 22W (Most efficient CCT adjustable, dark kitchens)
  3. TASAINEN 4000K 17W (best monochrome)

Led strip light for plinth

  1. Helmeile 3000K 7,2W (Basic warm evening light)
  2. Solo CCT 7,2W (temperature adjustable, spotless near floor)
  3. Helmeile CCT 7,2W (wardrobe plinths)

Led strip light for ceiling

  1. Solo CCT 14,4W (CCT adjustable, no dots)
  2. Helmeile CCT 14,4W (cheaper temperature adjustable)
  3. TASAINEN 4000K 17W (Best monochrome)

Led strip light for sauna

  1. Helmeile 3000K 7,2W (Warm light for sauna)
  2. Solo CCT 7,2W (CCT adjustable light for sauna)
  3. Solo CCT 3,6W (CCT adjustable low power for sauna)

Led strip light for bedroom

  1. Helmeile CCT 14,4W (Usually indirect lighting, no points visible)
  2. Helmeile 3000K 14,4W (most popular light temperature for bedrooms)
  3. Helmeile RGBW 14,4W (for children and young people!)

Led strip light for stairs

  1. Solo SLIM 3000K 7.2W (super narrow for step groove)
  2. Solo CCT 7,2W (CCT adjustable with higher power for railings)
  3. Solo CCT 3,6W (CCT adjustable low power for stairs)

Led strip light for kitchen

  1. TASAINEN 4000K 17W (best monochrome)
  2. Solo CCT 14,4W (No dots CCT adjustable with double led strips!)
  3. Helmeile CCT 22W (Most powerful CCT adjustable)

Led light strips for plants

  1. Helmeile CCT 22W (most powerful lighting with one strip)
  2. Helmeile CCT 14,4W (install two in parallel e.g. in a large corner profile)
  3. Solo CCT 14,4W (singleled strip)



End of the guide comments

Here was all info about led strip lights in one place. Buying LED strip lighting doesn’t have to be a difficult process, as long as you know what to look for. When buying LED strip lights, you need to make sure you know your application and installation location, and then understand your installation options, power requirements and colours. From our range of led strips, aluminium profiles, power supplies or transformers, control options and accessories, you’re sure to find what you need for your lighting project.

Remember that we are always available to support you along the way, by email(myynti@ledstore.fi) and by phone (045 251 4510). As always, feel free to share photos of your own projects on social media at #ledstorefi IG and ledstore.fi FB. We love to see the cool things our LEDs do, and it helps to provide inspiration for those who are not sure about the power and awesomeness of LEDs. Did you know that we already have over 3500 pictures of our LED installations in our Gallery!

Led light strips in the Gallery:

Product gallery: pictures of products in different installation locations

Indirect light: indirect light in different spaces

Room-specific: Light in different rooms

References: entire house that have been Photographed
